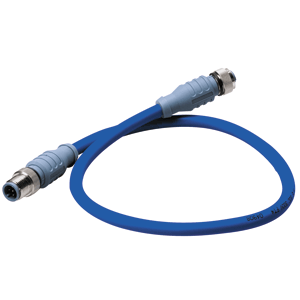

Maretron Mid Double-Ended Cordset - 6 Meter - Blue
Sold out
,

Maretron Mid Double-Ended Cordset – 6 Meter – Blue

0 Reviews
Out of stock

Original price was: $118.44.Current price is: $83.70.

(-29%)
  • Free Delivery: Spend $100.00 or more and receive free shipping
  • 24/7 Support: We’re here to help anytime you need us.
  • Exclusive Offers: Sign up for our newsletter to receive exclusive deals and discounts.
Wishlist
Compare
SKU: CR01-47016

Product details

Maretron Mid Double-Ended Cordset – 6 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    • Additional information

    Weight 1.4 kg
    Dimensions 6 × 6 × 1 cm
    UPC

    Manufacturer Part Number

    Manufacturer Name

    Country of Origin
