Product details

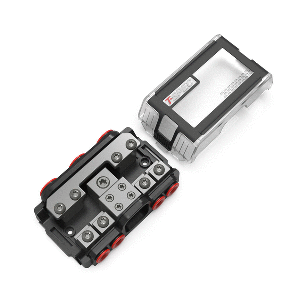

VPNB4 MANL 4 Position All-In-One Distribution Block with Cover
T-Spec designed VPNB4 distribution block to handle the high-current power and ground distribution for four (4) power sources, and protect them each with a mini-ANL fuse. This hefty little block distributes power from one (1) 1/0-gauge positive power cable to four (4) 4 to 8 gauge power leads, each routed through a mini-ANL fuse.
Then, the same block receives the amps’ two ground wires and combines them for a single 1/0 to 4 gauge ground cable.
Fuses sold separately.
Features:
- (2 positive) 1/0 to 4 AWG in to (4 positives) 4/8 AWG out
- (1 negative) 1/0 to 4 AWG in to (4 negatives) 4/8 AWG out
- TPE wrapped soft touch
- Dual sizes gasket set
- Water-resistant
- Solid brass construction
- Black nickel finish
- T20 Torx® screws
- Gate Lock technology
In the Box:
- Distribution block for both power and ground
- Plastic cover (attached)
- 3 Rubber grommets and sleeves on power inputs (installed)
- 2 Rubber grommets and sleeves on power outputs (installed)
*Sold as an Individual
