Product details

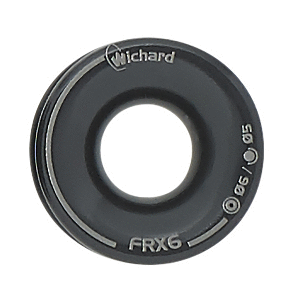

FRX6 Friction Ring – 7mm (9/32″)
Features:
- Efficient and light
- FRX Wichard thimbles are efficient, light, and reliable
- Very strong and can be used for heavy loads and semi-static lines
- FRX thimbles are designed to make your lines run smoothly with minimum wear
- They are hard anodized (50 microns) for a longer lifespan
Applications:
- Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more
Specifications:
- Materials: Anodized aluminium
- Working load: (lb) 880 / (kg) 400
- Weight: (lb) 0.004 / (g) 2
- A: (inch) 7/32″ / (mm) 5.5
- B: (inch) 9/32″ / (mm) 7
- C: (inch) 23/64″ / (mm) 9
- D diameter: (inch) 45/64″ / (mm) 18
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
